Parallella Models

The Parallella computer is available in three different models. Compare specs below.
Previous Models and Version History

Parallella Models











P1600-01-Shop1_1024x1024

Parallella-16 Micro Server

The Parallella-16 Micro Server Board is a cost effective bare-metal board for technical experts interested in parallel computing who want to use the board as an accelerator or standalone device in a client/server configuration, the Micro-Server unlocks the powerful capabilities of the Parallella-16 board and the Epiphany parallel processor via the gigabit Ethernet network connection.

P1601-01-Shop1_78c1d102-1715-4f1f-b8bb-93529cc343d0_1024x1024

Parallella-16 Desktop Computer

The Parallella-16 Desktop Computer is a fully enabled programmable computer based on the Parallella-16 board in a complete computer form factor and includes the Epiphany III parallel processor, the Xilinx Zynq 7Z010 CPU and has Ethernet, USB, HDMI, Serial peripheral interfaces as well as multiple GPIO ports.

P1602-01-Shop1_1024x1024

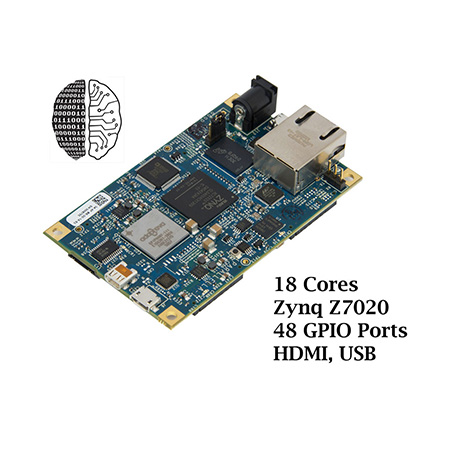

Parallella-16 Embedded Platfrom

The Parallella-16 Embedded Platform is a fully enabled programmable computer based on the advanced Xilinx Zynq 7Z020 CPU with expanded FPGA. The board includes the Parallella-16 board in a complete computer form factor, with the Epiphany III parallel processor, Ethernet, USB, HDMI, Serial peripheral interfaces as well as multiple GPIO ports. The Parallella-16 Embedded Platform includes the expanded FPGA and GPIO of the Zynq 7Z020 is well suited for embedded applications

Use Case

Ethernet connected headless server

A personal computer

Leading edge embedded systems

Host Processor

Zynq Z7010

Zynq Z7010

Zynq Z7020

Coprocessor

Epiphany III

Epiphany III

Epiphany III

Memory

1 GB DDR3

1 GB DDR3

1 GB DDR3

Ethernet

10/100/1000

10/100/1000

10/100/1000

Storage

Micro SD

Micro SD

Micro SD

USB

No

Yes

Yes

HDMI

No

Yes

Yes

Expansion IO

No

2 eLinks + 24 GPIO

2 eLinks + 24 GPIO

FPGA

Yes
28K Programmable Logic Cells
80 Programmable DSP Slices

Yes
28K Programmable Logic Cells
80 Programmable DSP Slices

Yes
80K Programmable Logic Cells
220 Programmable DSP Slices

Weight

1.3 oz (36 grams)

1.4 oz (38 grams)

1.4 oz (38 grams)

Size

3.5 x 2.1x 0.625″ (90x5x18 mm)

3.5 x 2.1x 0.625″ (90x5x18 mm)

3.5 x 2.1x 0.625″ (90x5x18 mm)

SKU

P1600-DK-xx

P1601-DK-xx

P1602-DK-xx

HTS Code

8471.41.0150

8471.41.0150

8471.41.0150
