HDMI Not Working

Hardware related problems and workarounds

HDMI Not Working

Postby coltonhurst » Mon Jun 23, 2014 4:55 pm

Finally got all my cords, etc. for my board, and after setting up the SD card, and following the starters guide, I plug everything up, and give it power. Then, nothing on my screen happens. My monitor says it isn't getting any signal; the board is on, but the monitor is apparently receiving no video input. The cord is brand new, everything is brand new; what is wrong? It's frustrating that it doesn't work, after buying everything.

Help please! Thanks
coltonhurst

Posts: 4
Joined: Mon Jun 23, 2014 4:49 pm

Re: HDMI Not Working

Postby 9600 » Mon Jun 23, 2014 6:50 pm

Just to check: you definitely grabbed the HDMI versions of the Linux kernel and FPGA bitstream?

Regards,

Andrew
Andrew Back (a.k.a. 9600 / carrierdetect)
User avatar
9600

Posts: 997
Joined: Mon Dec 17, 2012 3:25 am

Re: HDMI Not Working

Postby coltonhurst » Mon Jun 23, 2014 8:08 pm

Yes, I got them from http://www.parallella.org/create-sdcard/. I made sure I selected and used the hdmi ones.
coltonhurst

Posts: 4
Joined: Mon Jun 23, 2014 4:49 pm

Re: HDMI Not Working

Postby 9600 » Tue Jun 24, 2014 7:29 am

Does the green power LED, CR8 (opposite corner to the barrel jack) stay on?

What power supply are you using and is it rated at 2A or more?

If you plug it into a network do the LEDs by the Ethernet socket illuminate, and is your router leasing it a DHCP address?

Regards,

Andrew
Andrew Back (a.k.a. 9600 / carrierdetect)
User avatar
9600

Posts: 997
Joined: Mon Dec 17, 2012 3:25 am

Re: HDMI Not Working

Postby coltonhurst » Thu Jun 26, 2014 5:12 pm

Yes, both green lights stay on.

I am using a 5V/2A power supply.

And I haven't plugged it into a network yet, but when I can, I will try it.
coltonhurst

Posts: 4
Joined: Mon Jun 23, 2014 4:49 pm

Re: HDMI Not Working

Postby MacTuxLin » Sun Jun 29, 2014 11:01 am

Yes, I am having the same problem as well. I have the Ethernet cable plugged in & it seems to show activities but just nothing on the LCD screen. I've uploaded a video http://youtu.be/cmvMcwMo1UE.

I've used:
1. ubuntu-14.04-140611.img.gz (Extracted & burn onto uSD on Linux & Windows platform)
2. kernel-hdmi-default.tgz (copied both files to BOOT folder)
3. Copied & renamed parallella_e16_hdmi_gpiose_7020.bit.bin to parallella.bit.bin

My uSD card is a SanDisk 16GB. Not sure if it helps but am going to try an 8GB uSD card now.
User avatar
MacTuxLin

Posts: 13
Joined: Mon Jun 10, 2013 11:33 pm

Re: HDMI Not Working

Postby Claggy » Sun Jun 29, 2014 11:52 am

MacTuxLin wrote:Yes, I am having the same problem as well. I have the Ethernet cable plugged in & it seems to show activities but just nothing on the LCD screen. I've uploaded a video http://youtu.be/cmvMcwMo1UE.

I've used:
1. ubuntu-14.04-140611.img.gz (Extracted & burn onto uSD on Linux & Windows platform)
2. kernel-hdmi-default.tgz (copied both files to BOOT folder)
3. Copied & renamed parallella_e16_hdmi_gpiose_7020.bit.bin to parallella.bit.bin

My uSD card is a SanDisk 16GB. Not sure if it helps but am going to try an 8GB uSD card now.

BOOT folder? The devicetree.dtb, parallella.bit.bin and uImage need to go in the FAT 'BOOT' partition, it shouldn't be in a folder.
(there is a separate boot folder on rootfs partition)

Claggy
Claggy

Posts: 40
Joined: Mon Dec 17, 2012 3:25 am
Location: U.K

Re: HDMI Not Working

Postby MacTuxLin » Sun Jun 29, 2014 12:07 pm

I meant to say BOOT partition.

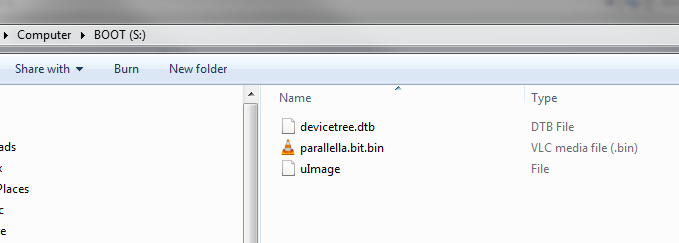

Attachments
User avatar
MacTuxLin

Posts: 13
Joined: Mon Jun 10, 2013 11:33 pm

Re: HDMI Not Working

Postby MacTuxLin » Sun Jun 29, 2014 12:07 pm

Tried 8GB, results still the same. No display.
User avatar
MacTuxLin

Posts: 13
Joined: Mon Jun 10, 2013 11:33 pm

Re: HDMI Not Working

Postby coltonhurst » Sun Jun 29, 2014 12:09 pm

That's essentially what's happening to me. I have everything in the boot partition, and the lights come on, etc. ... but nothing happens; no video output from the hdmi!
coltonhurst

Posts: 4
Joined: Mon Jun 23, 2014 4:49 pm
