Parallella Community • View topic - PORCUPINE BOARD

PORCUPINE BOARD

Forum for anything not suitable for the other forums.
Post a reply

PORCUPINE BOARD

Postby praveendamacharla » Tue Jun 16, 2015 2:40 pm

i am looking for a porcupine board for my research, if anybody had one i am willing to buy it.
praveendamacharla

Posts: 4
Joined: Sun Jun 07, 2015 4:49 am
Top

Re: PORCUPINE BOARD

Postby meant2invent » Mon Jun 22, 2015 11:50 am

I am in the process of building a Parallella breakout board/daughter card. What are the main features that you are looking for?
meant2invent

Posts: 6
Joined: Mon Jun 22, 2015 11:43 am
Top

Re: PORCUPINE BOARD

Postby praveendamacharla » Tue Jun 23, 2015 6:07 pm

I am looking for fully connected GPIO and Power. I don't need PEC south and north to connect more processors. How many days it will take for your board get ready ?
praveendamacharla

Posts: 4
Joined: Sun Jun 07, 2015 4:49 am
Top

Re: PORCUPINE BOARD

Postby meant2invent » Wed Jun 24, 2015 2:43 am

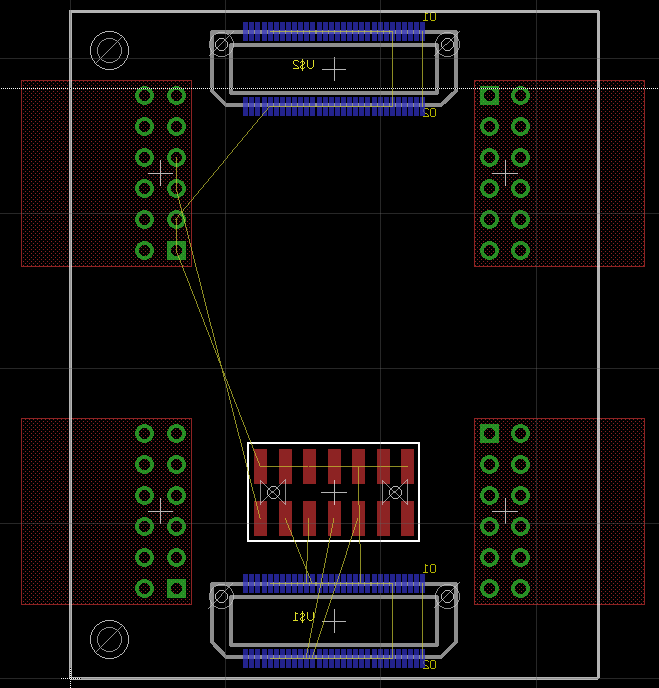

Here is a snapshot of my layout so far. Presently I have 4 PMODS, and a Xilinx JTAG header. I can also bring out several power rails if you like.

meant2invent

Posts: 6
Joined: Mon Jun 22, 2015 11:43 am
Top

Re: PORCUPINE BOARD

Postby ioiomi » Fri Jun 26, 2015 4:23 pm

I want to know where the PEC i can buy
ioiomi

Posts: 5
Joined: Fri Jun 26, 2015 4:00 pm
Top

Re: PORCUPINE BOARD

Postby meant2invent » Mon Jun 29, 2015 5:17 pm

I will be selling on my website in 2-3 weeks. Stay tuned.
meant2invent

Posts: 6
Joined: Mon Jun 22, 2015 11:43 am
Top

Re: PORCUPINE BOARD

Postby jahorin » Mon Jun 29, 2015 9:21 pm

How many are you planning on making?
jahorin

Posts: 18
Joined: Wed Jun 03, 2015 5:19 pm
Top

Re: PORCUPINE BOARD

Postby meant2invent » Tue Jun 30, 2015 2:14 pm

I will be making 100 boards initially. I have modified my design a bit to bring out all of the GPIO and POWER pins.
Attachments
meant2invent

Posts: 6
Joined: Mon Jun 22, 2015 11:43 am
Top

Re: PORCUPINE BOARD

Postby Amiejay » Wed Jul 01, 2015 3:01 pm

Meant2invent - do you have a rough idea of the price point for your board?

I'd be looking at buying at least 4. I'm in the USA.

Thanks...

Jamie
Amiejay

Posts: 28
Joined: Fri Oct 18, 2013 5:10 am
Location: Asheboro, NC
Top

Re: PORCUPINE BOARD

Postby tnt » Wed Jul 01, 2015 3:04 pm

Now that the RPi camera interface is becoming a reality, wouldn't it make sense to have the connector on your board ? (even if not populated)
tnt

Posts: 408
Joined: Mon Dec 17, 2012 3:21 am
Top
